Microscopes and indentation readers

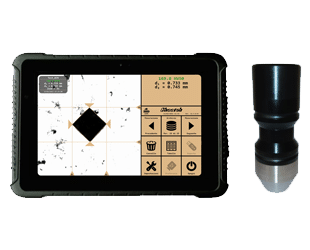

Cheetah measuring system

Cheetah measuring system, Brinell and Vickers indentation reader, portable hardness testers

Instrument composition:

• PC Tablet
• Measuring probe with built-in LED light and USB3 cable
• Measuring software on Windows operating system for automatic and manual reading of Brinell/Vickers indentation
• High-definition camera for optical evaluation of Brinell/Vickers indentation with digital zoom
• Connection cable
• Operating manual

Technical features:

Typical parameters of a file are:

• File name, with creation of a tests storage
• Measuring mode Archive/Live
• Digital zoom 1x – 1.5x – 2x – 3x – 5x
• HRC conversion
• Tolerance with insert of min/max limits
• Instrument calibration
• Printing of the report with customisation of company details and own logo
• Indentation images memorisation
• Data export to PDF and EXCEL format
• Images export

• Dimensions: h 140 mm – Ø 50 mm
• Weight: 0.600 kg
• Camera resolution: 1440 x 1080 Pixel
• Brinell diameters range: 0.3 – 6.0 mm
• Vickers diameters range: from diagonals 100 micron

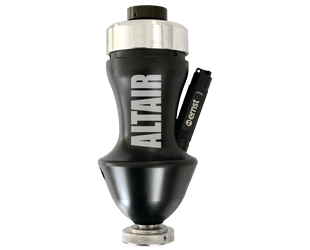

Altair 20x Microscope

Altair microscope, indentation reader

Standard supply:

• Protective case: Ensures safe storage and transportation of your scope.
• Calibration certificate: Guarantees the accuracy and reliability of your measurements.
• Brinell indentation reading chart: A handy reference tool for quick and easy readings.
• Instructions for use: Comprehensive guide to help you get the most out of your Altair 20x Hi-Light Scope.

Features:

• Integrated light source: The built-in LED lighting ensures a bright, clear view of the reading area, enhancing visibility and accuracy.
• Removable base ring: The scope comes with a detachable base ring, allowing for versatile applications and easy adjustments.
• Adaptable base: The narrow base design makes it ideal for smaller, confined areas without compromising stability.
• Ergonomic design: Lightweight yet robust, the scope’s ergonomic design ensures comfortable handling and ease of use, reducing fatigue during extended use.
• Precision measurements: Featuring a graduated scale of 0-6 mm and a resolution of 0.05 mm, it provides precise and reliable measurements for various applications.
• Compact dimensions: With a diameter of 66 mm and a height of 151 mm, this scope is compact and portable, weighing just 0.720 kg.
• Power supply: Operates on a standard AAA 1.5V battery, ensuring convenience and ease of replacement.
• ACCREDIA Certification: Available upon request, providing additional assurance of quality and accuracy.
