Brinell portable hardness testers

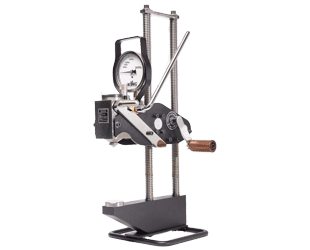

Portable hardness tester KING
The KING portable Brinell hardness tester is the most reliable, userfriendly and affordable and the only portable Brinell hardness tester on the market that is directly verifiable.
It is particularly durable thanks to the tungsten carbide ball certified for density and roundness, and to the stroke limiter for reduced operator’s error and consistent performance.
Features:
• Operation method/Principle: Brinell (tungsten carbide ball with a manual hydraulic applied load).
• Dimensions and weight: 59.7 x 28” x 30.5 cm – about 17 kg.
• Scales: HB30, HB15.
• Loads: 62.5 kgf to 3000 kgf.
• Load application: Manual.
• Hardness tester base capacity: 10 cm horizontal reach and 34 cm vertical (larger bases available).
Advantages:
• Can be used in any position; right side up, upside down, or even sideways.
• Portable so either the part can be moved to the tester or you can take the tester to the part.
• Lightweight and easy to maneuver.
• Fully interchangeable with multiple bases.
• Only one operator required.
• Flat, dome and “V” anvils supplied as standard equipment.
• Permanent impression can be checked and rechecked.
• 360° orientation and self-aligning.
• Manufactured to exacting tolerances ensuring consistent, repeatable results.
• Calibrated to build, then release, a load of 3000 kgf of pressure.
• Standards ASTM E-10, ASTM E-110, ISO 17025.
• Calibrated with traceability to NIST.
• Calibration and service plans available.
• One-year limited warranty.

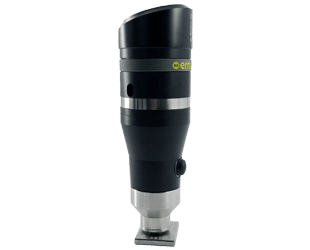

Portable hardness tester E-Brio-W
E-Brio-W Brinell Optical Scope is a cutting-edge solution meticulously crafted to redefine efficiency and precision in Brinell testing. Developed with a keen eye on market needs and technological advancements, this innovative device embodies the essence of quality and user-centric design.
Features:
• Seamless wireless integration: The E-Brio-W seamlessly integrates wireless technology from Ernst’s portable devices into an optical Brinell scope. With wireless functionality, users can experience safe and straightforward usage in any environment, ensuring unparalleled convenience.
• Precision simplified: Precision meets simplicity with the E-Brio-W. Engineered to offer unparalleled accuracy without compromising on usability, this device ensures that users can achieve precise measurements effortlessly.
• Adaptable performance: The E-Brio-W epitomizes adaptability, serving as an “essential” product that can be effortlessly enhanced with additional features as needed. This flexibility allows users to tailor their testing experience to meet evolving requirements without hassle. It operates seamlessly as a stand-alone unit, providing immediate measurements with its onboard display. Furthermore, users can enhance its capabilities at any time by purchasing the E-Brio-W Software, compatible with PC or tablet running Windows 10 or 11. This software unlocks a plethora of additional features, including data management, manual adjustment of the Brinell indentation, statistics, and report generation, providing users with comprehensive control over their testing processes.
Advantages:
• Exceptional precision – Advanced algorithm for edge detection ensures reliable and precise readings on any material and surface.
• Enhanced efficiency – Reduced Brinell indentation reading time to increase productivity.
• Unmatched flexibility – Stand-alone unit with integrated display or enhancement with additional software for data management, manual adjustment of Brinell indentations, and report generation.
• Wireless connectivity – Integrated wireless technology for a cordless experience, providing flexibility and freedom of movement in the work environment.
• Optimal price-performance ratio – High-level performance at a competitive price, ideal for companies seeking efficiency and precision in Brinell hardness testing.
Portable hardness testers STE/A and STE/B
Face the challenges of hardness testing with the STE hardness tester, a reliable solution used globally since the 1980s. At the heart of the STE hardness tester are our innovative shear pins, ensuring precise and consistent results.
This system precisely controls the force applied during indentation, ensuring reliable and repeatable measurements.
The versatility of the STE hardness tester is undeniable.
Thanks to its compact design, it can perform hardness tests on small surfaces and parts of various shapes and sizes, even in challenging positions. Whether you work in a crowded industry or a remote location, the STE hardness tester easily adapts to your needs.
A distinctive feature of the STE hardness tester is its user-friendly design and the ability to measure all Brinell hardnesses from 100 to 700 HB with minimal investment. Even non-expert operators can perform hardness tests with ease and precision thanks to the intuitive design of our instrument.
Our commitment is to provide a complete and reliable solution for hardness testing at an affordable cost. Each STE hardness tester comes with original ERNST patented shear pins and corresponding reading tables, ensuring a seamless testing procedure.
Join the numerous industries that rely on the STE hardness tester for their hardness testing needs. Invest in a proven solution that offers precision and reliability at a low cost, supporting your hardness testing processes with effectiveness and efficiency.
Features:
• Small and handy – Can be used on small surfaces, in all positions, on parts of any shape and size.
• Simple and versatile hardness tester – All Brinell hardnesses from 100 to 700 HB are available with a limited investment.
• Makes a standard Brinell measurement – It allows the immediate optical reading with ANTARES portable microscope or automatic e-Brio system that, being equipped with Ernst tables, gives back in real time the result in Brinell points.
• Complete and stand-alone system – It is supplied with original ERNST patent calibrated pins and with the corresponding reading tables.
