Metallographic mounting machines

Watch the VIDEO on YouTube!

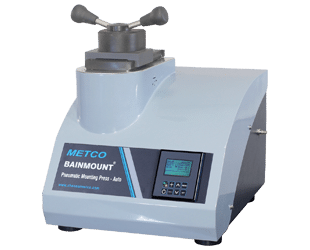

Bainmount P Auto mounting machine

imm inglobatrici pauto 1

• Pneumatic operating system
• Digital temperature indicator and digital timer with display
• Mould dimensions Ø 30 – 40 mm
• Automatic water cooling system
• Quick ram return to speed up reloading and automatic cycle system
• Thermostatically controlled 1600 W mould heater
• Buzzer indication for cooling cycles
• Power supply: 220 V / 110 V
• Dimensions: 530 x 600 x 470 mm

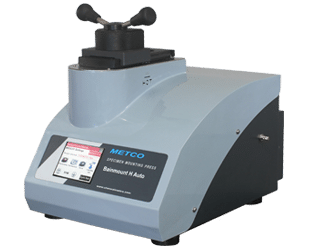

Bainmount H Auto mounting machine

Bainmount H Auto mounting machine, metallographic mounting machines

• Hydraulic automatic system
• Auto-doser
• Mould dimensions Ø 30 − 40 − 50 mm
• Heater 1600 Watt, single phase
• Automatic water cooling system
• Ideal for transparent, EPO and bakelite moulds preparation
• Timer-buzzer for heating and cooling cycles
• Presets and data storage up to 25 programs
• Dimensions: 430 x 570 x 510 mm

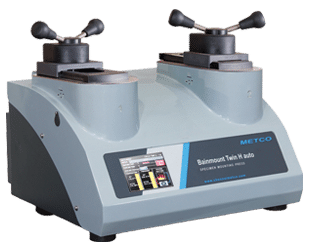

Bainmount Twin H Auto mounting machines −− VIDEO

Bainmount Twin H Auto mounting machines, metallographic mounting machines

• Hydraulic automatic system
• Mould dimensions Ø 30 − 40 − 50 mm
• Heater 1600 Watt, single phase
• Automatic water cooling system
• User friendly advanced LCD touch screen
• Timer-buzzer for heating and cooling cycles
• Ideal for transparent, EPO and bakelite moulds preparation
• Presets and data storage up to 25 programs
• Simultaneous mounting in both cylinders
• Dimensions: 650 x 630 x 510 mm
