Metallographic grinding and polishing machines

Watch the VIDEO on YouTube!

Bainline Twin Wet grinding machine

• Endless belt 100 x 915 mm
• Motor 1 HP, 3-phase
• Simplified belt change mechanism
• Water cooling system
• Speed 1440 rpm
• For flat, coarse grinding prior to fine grinding
• Dimensions: 670 x 680 x 290 mm

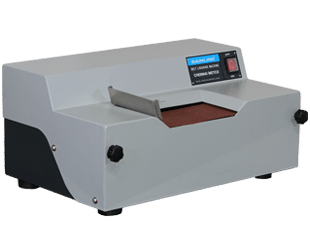

Bainline GP grinding machine

• Endless belt 100 x 915 mm
• Motor 0.5 HP, single phase
• Simplified belt change mechanism
• For flat, coarse grinding prior to fine grinding
• Dimensions: 560 x 350 x 230 mm

DOWNLOAD

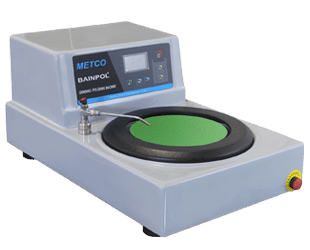

Bainpol VT polishing machine

• Single disc, standard Ø 200 mm
• Optional discs Ø 250 – 300 mm
• Motor 0.5 HP, single-phase, high torque
• AC drive
• Variable speed 50 – 1000 rpm or 50 – 600 rpm
• LCD display
• Corrosion resistant
• Flexible water jet with control valve
• Power supply: 220 V / 50 Hz or 110 V / 60 Hz
• Dimensions: 360 x 660 x 310 mm

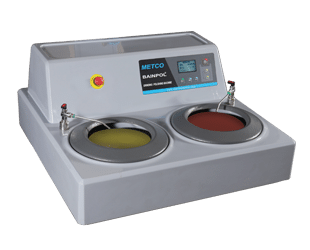

Bainpol VTD polishing machine

• Double disc, standard Ø 200 mm
• Optional discs Ø 250 – 300 mm
• Motor 0,5 HP, single-phase, high torque
• AC drive
• Variable speed 50 – 1000 rpm or 50 – 600 rpm
• LCD display
• Corrosion resistant
• Flexible water jet with control valve
• Power supply: 220 V / 50 Hz or 110 V / 60 Hz
• Dimensions: 710 x 660 x 310 mm

DOWNLOAD

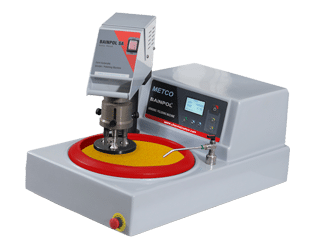

Bainpol Semi−Automatic polishing machine

• AC motor 0.5 HP, single-phase
• LCD touch display
• Variable speed 50 – 600 rpm
• Head speed 100 rpm
• Digital timer
• Auto head to hold 3 samples: 30 – 40 – 50 mm
• Independent powered polish head
• Standard disc Ø 300 mm, optional Ø 250 mm
• Dimensions: 435 x 750 x 520 mm
• Also available with double disc

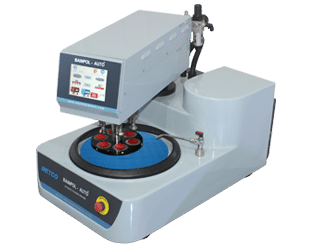

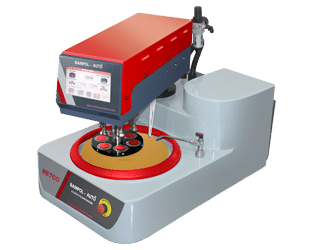

Bainpol Auto polishing machine −− VIDEO

• AC motor 1 HP, single-phase, high torque
• LCD touch display, digital timer
• Variable speed 50 – 600 rpm
• Variable pression 1 – 4 bar
• Water cooling system
• Automatic head, up to 6 moulds
• Independent powered polish head, variable speed 30 – 150 rpm
• Standard disc Ø 200 – 250 – 300 mm
• Dimensioni: 850 x 500 x 600 mm
• Also available with double disc

DOWNLOAD

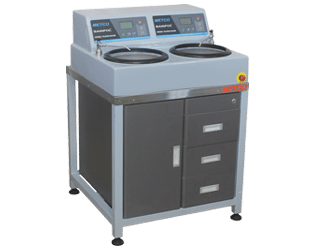

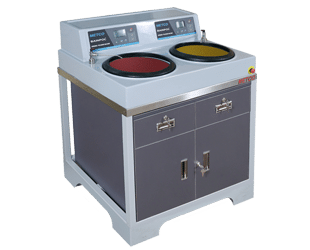

Bainpol VFD polishing machine

• Heavy duty floor model with storage compartment
• Double disc, variable speed 50 – 600 rpm
• AC motor 0.5 HP, single-phase
• Standard disc Ø 300 mm
• Optional discs Ø 200 – 250 mm
• Corrosion resistant
• Drainage system
• Dimensions: 870 x 750 x 1020 mm
• Also available the semi-automatic version

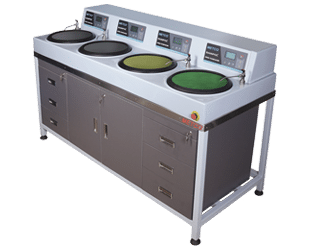

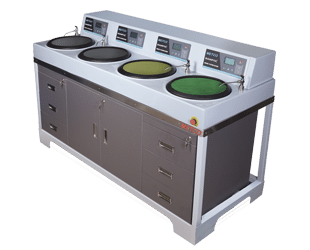

Bainpol VFF polishing machine −− VIDEO

• Heavy duty floor model with storage compartment
• Four discs, variable speed 50 – 600 rpm
• AC motor 0.5 HP, single-phase
• Standard disc Ø 250 mm
• Optional discs Ø 200 – 300 mm
• Corrosion resistant
• Drainage system
• Dimensions: 1740 x 750 x 1020 mm
