Vickers hardness testers

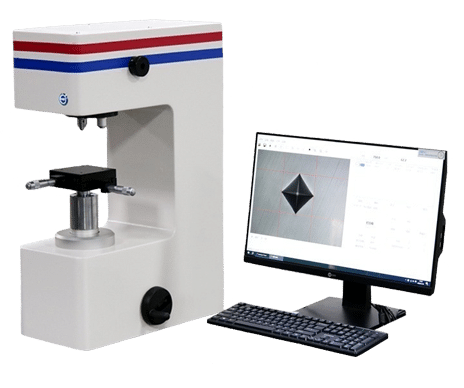

Manual Vickers hardness tester – THV-1MPE
Description:
• The hardness tester has a simple design: built-in light source and camera, branded computer, hardness tester’s specific control and measurement software.
• Built-in 5 million HD CCD camera, the light path is short, the image is clearer.
• Built-in high brightness, long life LCD light source.
• Built-in hardness tester special control and measurement software: hardness tester’s control, pressure mark, automatic turret, brightness adjustment, automatic hardness measurement.
• The screw adopts unique optical cross-guide guide to ensure guidance accuracy. When the sample is lifted, the indentation can be better focused and the image position remains unchanged.
• Calibration using micrometer or hardness block calibration, can be automatically calibrated, so that the hardness value more accurate in line with the requirements.
• Hardness value statistics and hardness exceed alarm.
• Hardness according to the national standard and ASTM conversion into other hardness.
• The test report can be customized by the user, and all test data, including the indentation image, will be saved forever for easy historical inquiry.
Technical features:
| Model | THV-1MPE |
| Turret | Automatic |
| Test force | 10 gf (0.098 N), 25 gf (0.245 N), 50 gf (0.49 N), 100 gf (0.98 N), 200 gf (1.96 N), 300 gf (2.94 N), 500 gf (4.9 N), 1 kgf (9.8 N) |
| Test force switching | Manual |
| Standards | GB/T4340.2, ASTM E92 |
| Measurement resolution | 0.01 µm |
| Conversion ruler | Lowe's, Brinell |
| Hardness test range | 8 - 2900 HV |
| Method of test force application | Automatic (loading, retaining, unloading) |
| Test objectives | 10X, 40X |
| Test force retention time | 1 - 99 sec |
| Maximum allowable specimen height | 160 mm |
| Distance from indenter to machine wall | 170 mm |
| X-Y test bench | Size: 100x100 mm - Maximum movement: 25x25 mm |
| Computer | 21,5" monitor - 8 GB RAM + 256 GB hard disk, WIN10 Operating System, WIFI |
| Camera | 5 megapixel |
| Power supply | AC 220 V + 5%, 50-60 Hz, 600 W |
| Weight | About 50 kg |
| Size | 540x260x650 mm |
Semi-automatic Vickers hardness tester – iHV-1/iHV-10/iHV-50
Advantages:
• Independently developed software to achieve fast and accurate focusing on new algorithm and industry standards.
• HV – HK pressure head, multi objective configuration 10X, 40X (2.5X, 5X, 20X, 50X optional).
• Supporting high-speed automatic focusing with optical cross rail lifting mechanism and automatic collision prevention device.
• All built-in light sources, cameras, focusing and force changing devices.
• Workbench repeatability positioning accuracy: 1 micron stroke can reach a maximum of 200 mm.
• Multiple languages available in Chinese and English for selection and customization.
• Automatic switching of force values and brightness adjustment for each experiment. Automatic switching of force values for different materials, different surface conditions.
Description:
• Auto focus.
• 6-station precision turret.
• Z-axis automatic control and anti-collision protection.
• Modern minimalist style.
• Ultra high precision X Y workbench.
• Multiple language options.
• Workbench panoramic camera (optional): equipped with a panoramic camera that does not require image stitching to generate sample panoramic images, with a built-in 12 million pixel high-definition industrial camera.
• Automatic measurement of hardness value: no need for manual positioning, the new algorithm for automatic and precise measurement can detect indentations on uneven or scratched surfaces.
Technical features:
| Model | IHV-1AZ | IHV-10AZ | IHV-50AZ |
| Force range | 10 gf - 1 Kgf | 0.3 - 10 Kgf | 0.5 - 50 Kgf |
| Automatic switching of force values | Yes | ||
| Vickers measurement | Yes | ||
| Knoop measurement | Yes | ||
| Brinell measurement (optional) | Yes | ||
| Automatic turret | Yes | ||
| Number of turret workers | 3(6) | ||
| Objective lens | 10X，40X (2.5X, 5X, 20X, 50X) | ||
| Panoramic camera | Optional | ||
| Automatic brightness adjustment | Yes | ||
| Laser crosshair positioning | Optional | ||
| Automatic measurement of hardness value | Yes | ||
| Sample edge positioning | Optional | ||
| Sample shape matching module | Optional | ||
| Welding module | Optional | ||
| Measurement of fracture toughness | Yes | ||
| Report output | Yes | ||

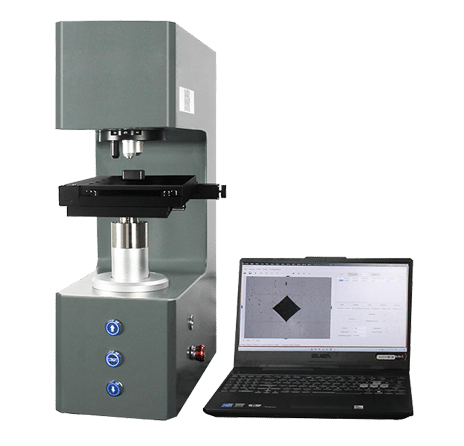

Automatic Vickers hardness tester – iHV-1/iHV-10/iHV-50
Advantages:
• Our self-developed software achieves fast and accurate focusing, with new focusing algorithms that refresh industry standards.
• HV – HK pressure head, multi objective configuration 10X, 40X (2.5X, 5X, 20X, 50X optional).
• High speed automatic focusing using optical cross rail lifting mechanism and automatic anti-collision device.
• Automatically switch between different experimental force values, adjust brightness and contrast based on different materials and surface conditions.
• Equipped with a panoramic camera that does not require image stitching to generate sample panoramic images. Built in 12 megapixel high-definition industrial camera.
• No need for manual positioning, the new algorithm for automatic precise measurement can detect indentation on surfaces that are not smooth or have scratches.
Description:
• Auto focus.
• 6-station precision turret .
• Z-axis automatic control and anti-collision protection.
• Workbench panoramic camera (optional).
• Automatic measurement of hardness value.
• The light source, camera, focusing, and power conversion devices are all built-in.
• Ultra high precision X/Y workbench: workbench repeatability positioning accuracy is 1 micron, maximum travel up to 200 mm.
• Multiple languages available for selection and customization
Technical features:
| Model | IHV-1AZXY | IHV-10AZXY | IHV-50AZXY |
| Force range | 10 gf - 1 Kgf | 0.3 - 10 Kgf | 0.5 - 50 Kgf |
| Automatic switching of force values | Yes | ||
| Vickers measurement | Yes | ||
| Knoop measurement | Yes | ||
| Brinell measurement (optional) | Yes | ||
| Automatic turret | Yes | ||
| Number of turret workers | 3(6) | ||
| Objective lens | 10X，40X (2.5X, 5X, 20X, 50X) | ||
| Panoramic camera | Optional | ||
| Automatic brightness adjustment | Yes | ||
| Laser crosshair positioning | Optional | ||
| Automatic measurement of hardness value | Yes | ||
| Sample edge positioning | Optional | ||
| Sample shape matching module | Optional | ||
| Welding module | Optional | ||
| Measurement of fracture toughness | Yes | ||
| Report output | Yes | ||
